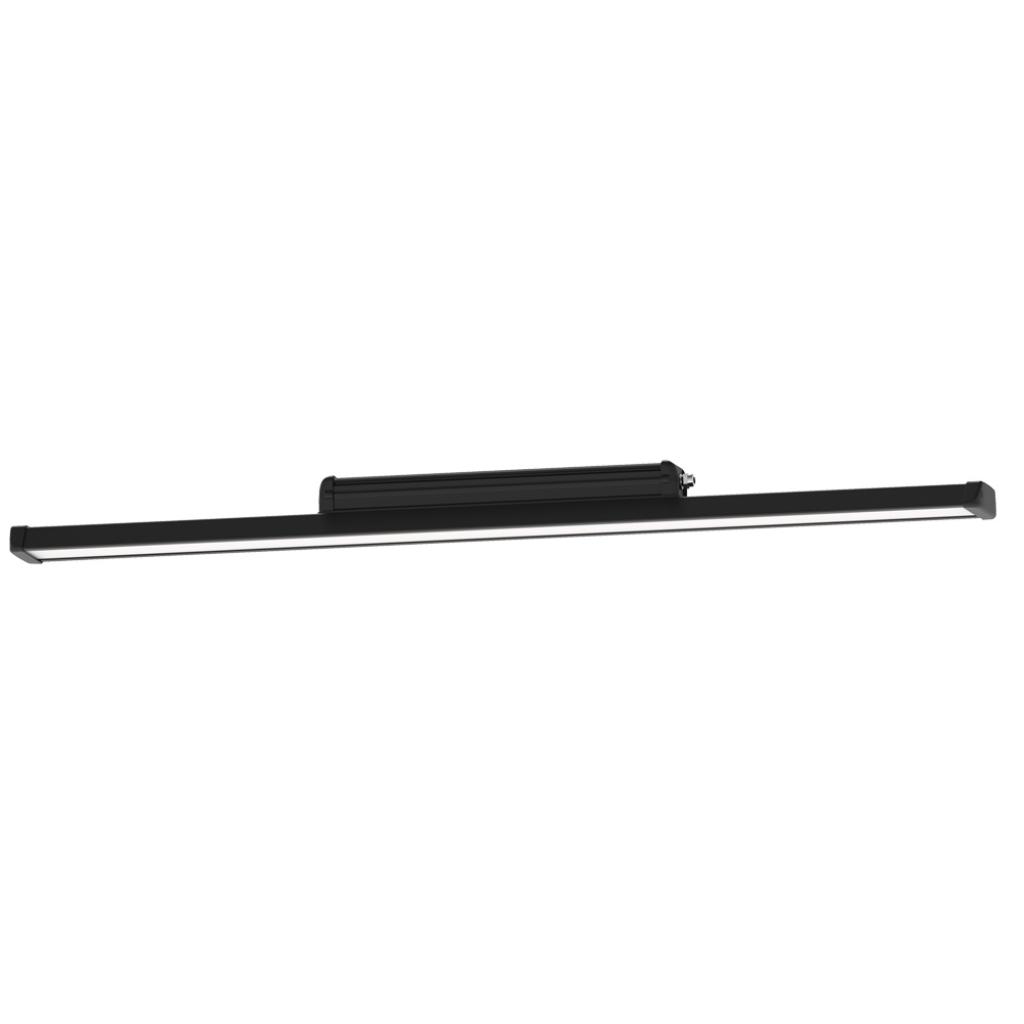

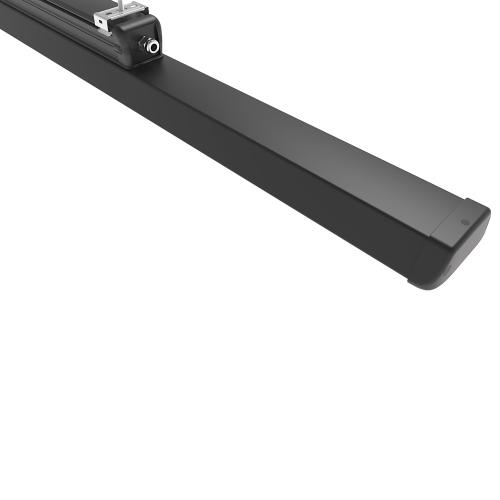

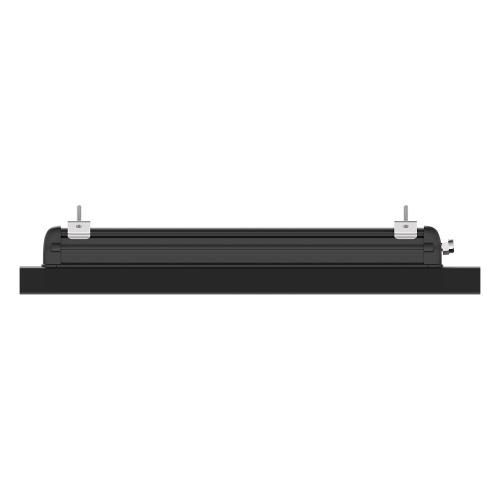

Resista 1500 7500lm 4000K Svart
Art.nr: 7215385
GTIN: 7072125120911

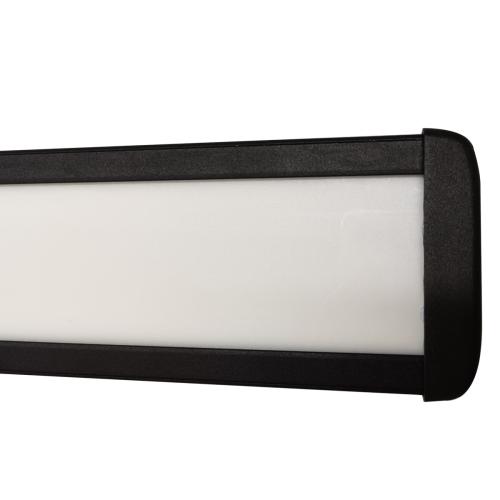

Resista Solid armatur designad för användning i aggressiva miljöer. Armaturhus i pulverlackerad aluminium med härdat glas.
Tillgänglighet hos grossist
Brandklass D: Ja
IP klass: 69
Skyddsklass: I
Beskrivning

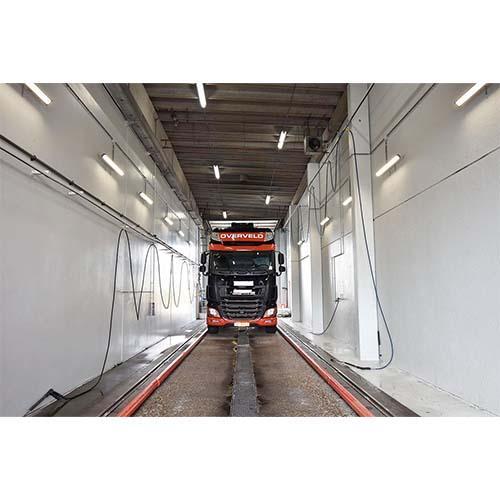

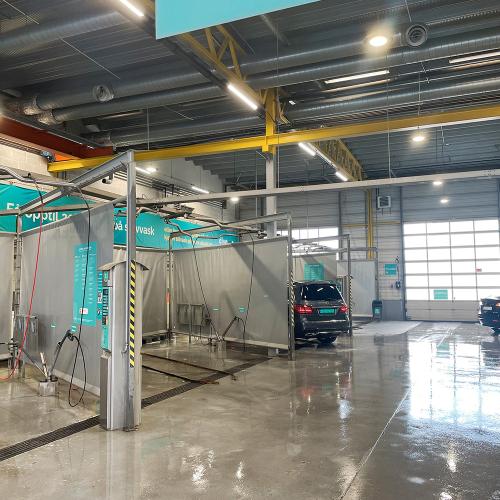

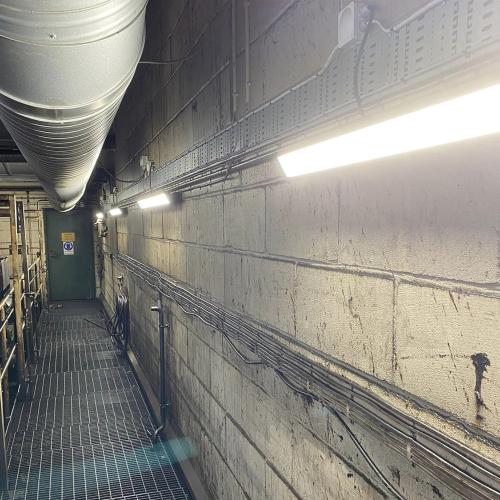

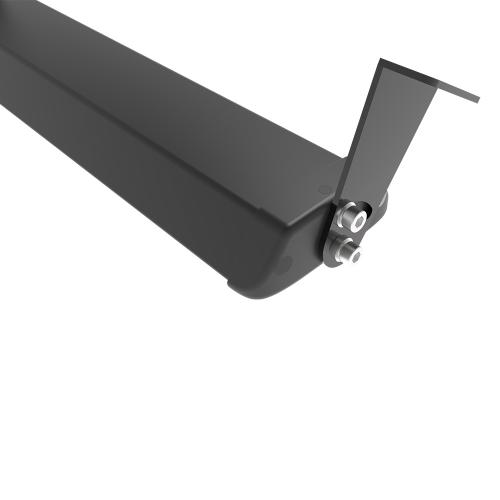

Massiv armatur designad för användning i aggressiva miljöer. Armaturhus i pulverlackerad aluminium med lock i härdat glas. Fästen, skruvar mm i syrafast 316 stål. Armaturen är resistent mot ammoniak, matolja, fett, kolsyra, bensin, starka rengöringsmedel, aceton, metanol, fenol, bensen, salt och avgaser. Detta gör armaturen användbar inom jordbruk, livsmedelsproduktion, biltvättar, kemisk industri, marina installationer och tunnlar. Resista tål högtryckstvätt 80-100 Bar vid 80°C (IEC60529). Drifttemperatur -40°C – +45°C. 2m kabel ingår. Klass I, IP69K.
Egenskaper / detaljer
• Ra>80
• 100 000 timmar L80B50 vid Ta25°C
• Bredstråle
• IP69K resistent mot kemikalier etc.
• Tål högtryckstvätt 80-100 Bar vid 80°C
• Komplett med LED-drivdon
• DALI 2
• 100 000 timmar L80B50 vid Ta25°C
• Bredstråle
• IP69K resistent mot kemikalier etc.
• Tål högtryckstvätt 80-100 Bar vid 80°C
• Komplett med LED-drivdon
• DALI 2
Ytterligare information
Teknisk data
Spänning (V)
230
Effekt (W)
60
Ljusflöde (lm)
7500
Lumen/Watt (lm)
125
Drivdonsstorlek (mA)
1100
Antal armaturer B 10A
7
Antal armaturer B 16A
11
Antal armaturer C 10A
11
Antal armaturer C 16A
19
Max. omgivningstemperatur (°C)
+45
Min. omgivningstemperatur (°C)
-40
Nominell livslängd L70B10 Ta25°
125.000
Nominell livslängd L70B50 Ta25°
150.000
Nominell livslängd L80B10 Ta25°
75.000
Nominell livslängd L80B50 Ta25°
100.000
Färgåtergivning (Ra)
80
Färgtemperatur (K)
4000
SDCM
3
Utförande
IP klass
69
Material
Aluminium
Färg
Svart
Material hus/kapsling
Härdat glas
Integrerad/extern drivdon
Integrerad
Skyddsklass
I
Dimningstyp
–
Dimbar
Nej
DALI
Nej
Brandklass D
Ja

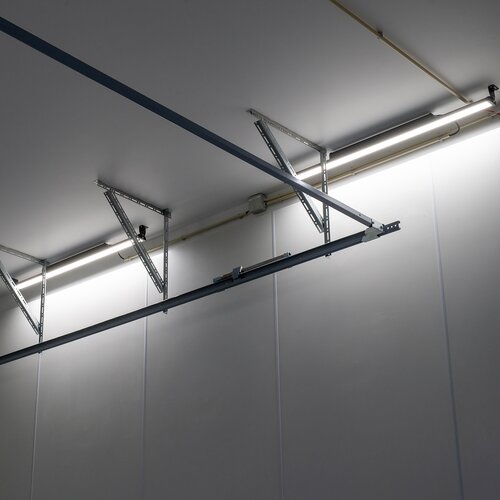

Monteringsmetod
Upphängd
Snabbanslutning
Nej

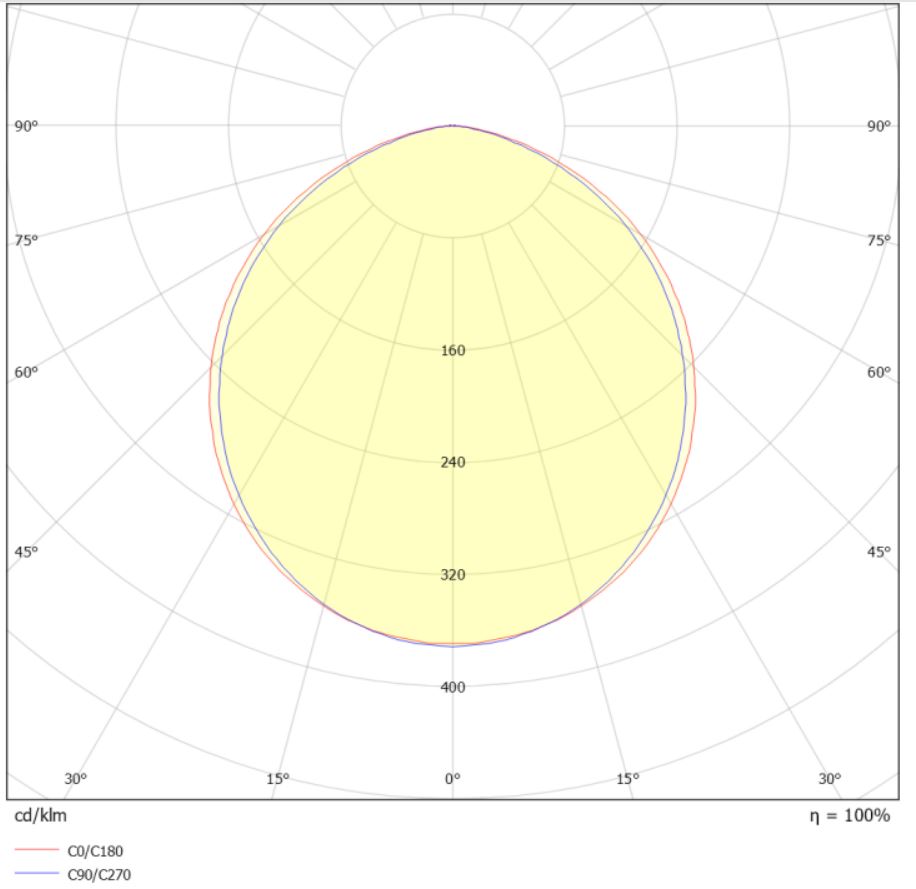

Ljusspridningsvinkel (°)
120
Optik
Lins
Ljuskälla
LED
IK klass
10
Antal poler
3
Användningsområde
Tvättstuga

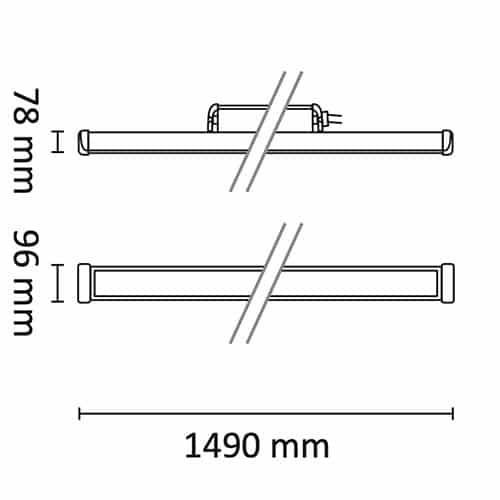

Mått
Höjd (mm)
78
Bredd (mm)
96
Längd (mm)
1490
Tilläggets längd. kabel (mm)
2000
Dokumenter
